At Codimar we not only manufacture rollers, conveyors and equipment for lifting, transport and intralogistics in general, we also have a wide and complete commercial program of components for the manufacture of rollers.

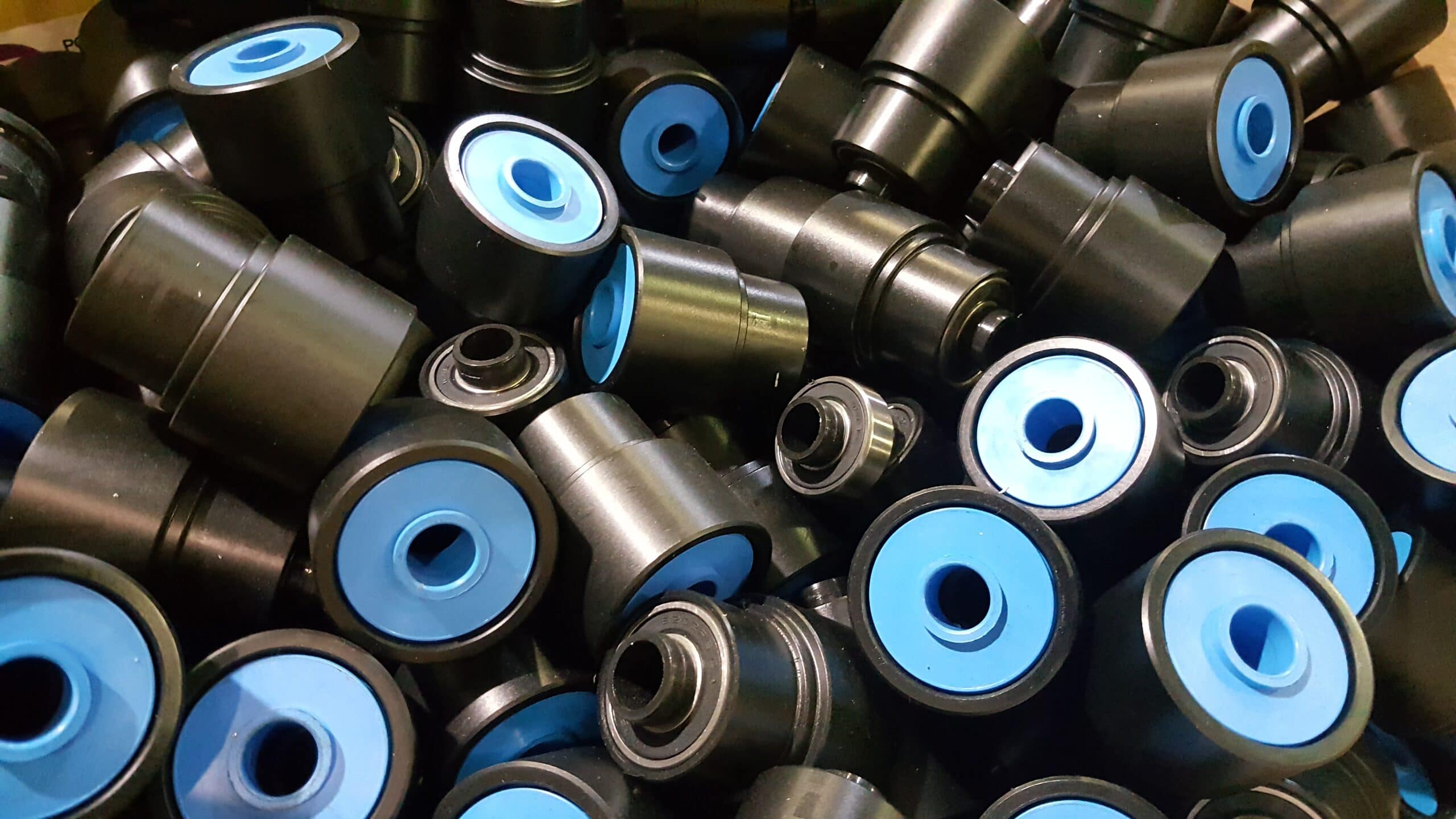

A wide range of heads, covers, bushings, pinions and other components; Both metallic and thermoplastic. There are two lines of components, well differentiated: Metallic Components and Thermoplastic Components.
Light series 00/01 for tubes with a diameter of 16, 20, 30 and 40. Provided with row of balls, with minimal starting effort; indicated for the manufacture of very light rollers.
Intermediate series 02/03 and 30/31, for tubes with diameters 50 and 60. Provided depending on the type, ball row or stamped bearing, depending on whether it is the manufacture of rollers for the transport of light or semi-heavy loads.
Precision series for tubes with diameters 50, 60, 80, 89 and 108. They are heads equipped with precision bearings and shafts between diameter 12 and 25. They are indicated heads in the manufacture of heavier rollers (especially the 80, 89 and 108 diameter series), intended for the transport of heavier goods.

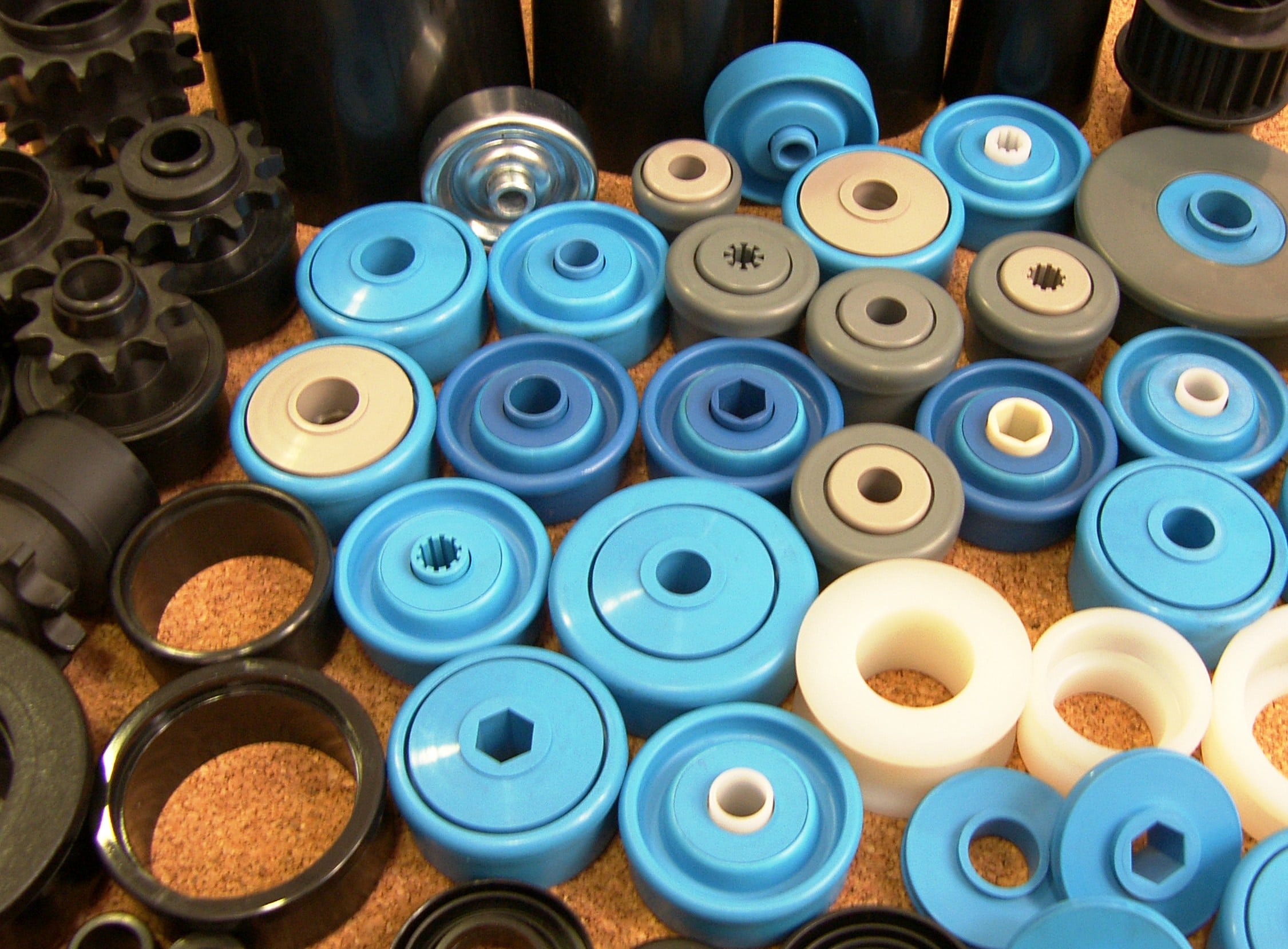

Thermoplastic pinions and adapter bushings for shafts and tubes. A wide range of single or double crown components for half-inch chains and accumulation and fixed roller construction. Possibilities from 9 to 14 teeth.
CDM.16, CDM.20 and CDM.30 light series, drawing components for the manufacture of light rollers, based on stamped bearings with minimal starting effort, recommended above all for gravity transport needs.
medium/high series CDM.40, drawing components for the manufacture of medium/high series rollers depending on tube diameters: 50, 60, 70, 80, 89 and 108 and shafts between 12 and 25, fitted with precision bearings, obviously with a slightly higher starting effort, due to the ZZ or 2RS protection of the bearing, depending on the case. Recommended above all for transport needs of medium/heavy weight materials and where a quick turn of the roller is not necessary, for transport by gravity.

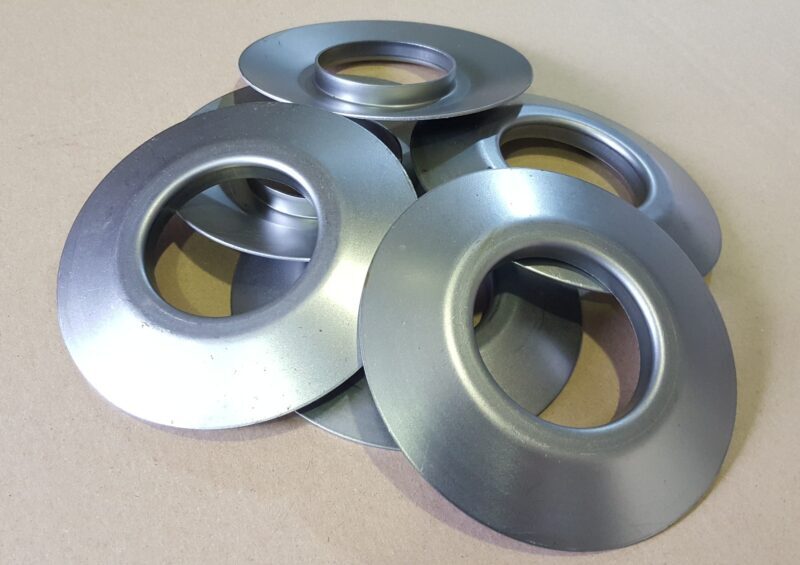

heavy series LH.6204/6305, weldable cups for the manufacture of heavy series rollers with diameters between 60 and 159 and shafts from diameter 17 to 40, fitted with precision bearings, obviously with a slightly higher starting effort, due to the protection 2RS of the bearing, depending on the case. Recommended above all for the transport needs of heavy materials, both for mining and for the transport of pallets in maintenance.

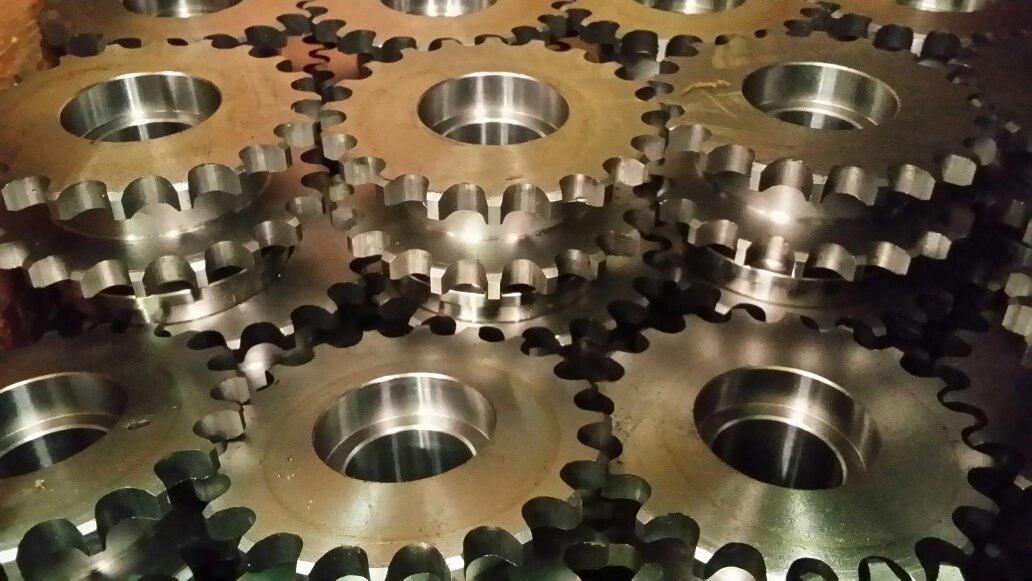

Metallic sprockets in carbon steel or stainless steel. A wide range of single, double or triple crown for chains of different pitches. They can be for specific nailing in thermoplastic bushings for the construction of fixed or friction/accumulation rollers or provided with flanges to be welded directly to the roller tube. Infinite toothing possibilities in terms of number of teeth and pitch. As well as different sockets for bearings, depending on the axis required.

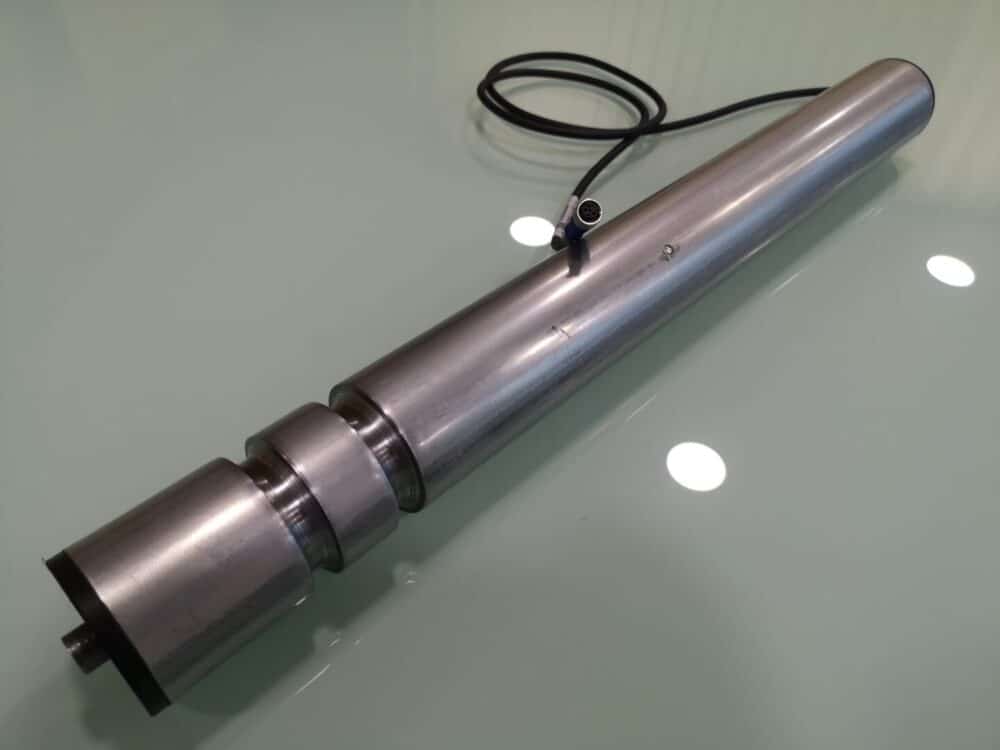

In addition to the usual components for the manufacture of the roller, at Codimar we have other components such as: standard metallic or thermoplastic sheaves, multidirectional sheaves, omni balls, mini rail , brake components for rollers and braking drums, motor rollers and control cards, etc. …
