- The motorization is carried out by means of a gear motor or a drum motor, resulting in a more compact design in this case.
- Noise level: low
- Length: 300 to 6000 mm
- Useful width: 60 to 1500 mm
- Maximum load capacity: 20kg / m
- Ø Driving drum: 60 to 120 mm
- Ø Tensioning drum: 60 to 120 mm
- Frame: Carbon Steel / Stainless
- Finish: Painted / Zinc Plated / Sandblasted
- Speed: 3 to 40 m / min
- Motorization: central or head
- Height adjustable leveling feet ± 50mm

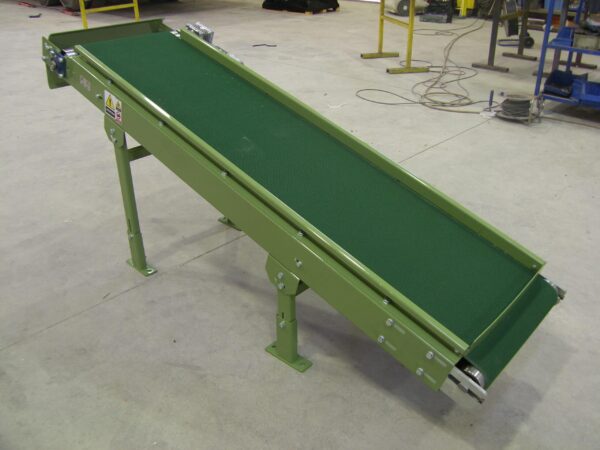

B10 Belt Conveyor on Sheet Metal Cradle
Belt Conveyors offer a continuous physical support of the transported product , therefore, it is a suitable means when it comes to transporting granular or small material or in cases where greater stability of the transported product is required.
There are multiple types of belt both in their fabric and covering material as well as in their dimensions and accessories, so that they adjust to the most diverse formats of products to be transported.
